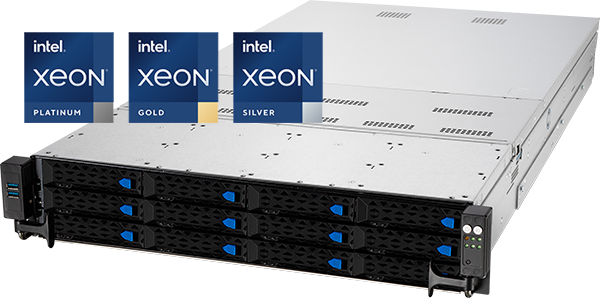

ASUS servers powered by 3rd Gen Intel Xeon Scalable processors help customers cut down time to solution for a wide variety of applications, add improved security features and enable all workloads to be run in the cloud, on-premises or a private cloud.
ASUS Servers featuring 3rd Gen Intel Xeon Scalable processors deliver significantly enhanced performance and efficiency. 3rd Gen Intel Xeon Scalable processors are optimised for cloud, HPC, security, network, enterprise and IoT workloads and feature up to 40 powerful cores.
1U dual-socket server powered by 3rd Gen Intel Xeon Scalable processors that supports up to 32 DIMMs, one dual-slot GPU, 4 NVMe, four PCIe slots, one OCP 3.0, dual M.2 and ASUS ASMB10-iKVM.
2U dual-socket server powered by 3rd Gen Intel Xeon Scalable processors that supports up to 32 DIMMs, four dual-slot GPUs, eight NVMe, nine PCIe 4.0 slots, OCP 3.0, dual M.2 and ASUS ASMB10-iKVM.
2U dual-socket server powered 3rd Gen Intel Xeon Scalable processors that supports up to 32 DIMMs, four dual-slot GPUs, eight NVMe, nine PCIe 4.0 slots.
2U dual-socket GPU server powered 3rd Gen Intel Xeon Scalable processors that supports up to 16 DIMM, four dual-slot GPU, 4 M.2, eight NVMe (by SKU), total eleven PCIe 4.0 slots.
2U dual-socket GPU server powered 3rd Gen Intel Xeon Scalable processors that supports up to 16 DIMM, four dual-slot GPU, 4 M.2, 4x NVMe (by SKU), Up to 11x PCIe 4.0 slots.
2U dual-socket server powered by 3rd Gen Intel Xeon Scalable processors that supports up to 32 DIMMs, 24 NVMe, nine PCIe 4.0 slots, OCP 3.0, dual M.2 and ASUS ASMB10-iKVM
2U4N server powered by 3rd Gen Intel® Xeon Scalable processors, with each node supporting up to 16 DIMM, one PCIe® 4.0 slot, one OCP 3.0 and two M.2, and a total of eight NVMe/SAS/SATA drives.
The ASUS series servers in this range are powered by the ultra-fast 3rd Gen Intel Xeon Scalable processor family. Select from servers that integrate dual-socket, single socket and multi-node solutions for specific workloads in HPC, AI, databases and hypervisors to get the most out of the new platform, which includes Intel Optane persistent memory 200 series, PCIe 4.0 and Intel Ethernet.
3rd Gen Intel Xeon Scalable processors feature up to 40 cores and a variety of frequency and power supports. 3rd Gen Intel Xeon Scalable processors provide blazing fast performance that is up to 40% faster than their prior gen counterparts. This platform possesses a wide range of built-in security features and provides outstanding security performance including data integrity, encryption and authentication.
ASUS collaborated with firmware partners to enhance system-memory usage efficiency and management based on the 3rd Gen Intel Xeon Scalable platform. To minimise memory-failure rates and optimise migration whilst running critical workloads on VMs, Intel Memory Failure Prediction (MFP) technology is built in to ASUS ASMB10-iKVM. This lessens the need for replacement DDR4 DIMMs, which can lead to cost benefits.
The newest server-management solution from ASUS, the ASUS ASMB10-iKVM is built on the ASPEED 2600 chipset running on the latest AMI MegaRAC SP-X. The systems delivers a variety of interfaces to allow out-of-band server mangement through WebGUI, Intelligent Platform Management Interface (IPMI) and Redfish API.
ASMB10-iKVM is an agentless management module for securely, efficiently and effectively controlling ASUS servers. When an ASUS server is connected to power and networking, ASMB10-iKVM allows that system to be monitored and fully managed either on-premises or over a network remotely.
| Maximum Core Count Supported | Up to 40 |
| Base Frequency Supported | Up to 3.1 GHz |
| Maximum Single-Core Intel Turbo Boost Technology 2.0 Frequency Supported | Up to 4.3 GHz |
| Processor Cache Memory Support | Up to 38.5 MB of L3 Cache (1.375 MB/core) |
| Intel Ultra Path Interconnect (Intel UPI) | Six Intel UPI supported per processor (Up to 10.4 GT/s) |
| Processor Performance Support | Intel Turbo Boost 2.0 Technology, Intel Hyper-Threading Technology (Intel HT), Intel Speed Shift Technology, Enhanced Intel SpeedStep Technology |
| Intel Speed Select Technology (Intel SST) | Intel SST Core Power (SST-CP) and Intel SST Turbo Frequency (SST-TF) features are supported on select processors |
| Intel Deep Learning Boost | VNNI and bfloat16 supported |
| Intel Advanced Vector Extension 512 (Intel AVX-512) Support | Intel AVX-512 with up to 2 FMA support |
| Number of Processor Sockets Supported | 4 or 8 sockets |
| Thermal Design Point (TDP) | Supporting a range from 150W to 260W depending on customer needs and implementation |
| Socket Type | Socket P+ (4189 pins) |
| System Memory Support | 6 channels, Up to DDR4 3200 MT/s (1 DPC) with ECC support
12 DIMMs/socket, Support for 16Gb density DIMMs |
| Intel Optane Persistent Memory Support | Intel Optane Persistent memory 200 series supported on 4-socket systems only |
| Maximum DRAM System Memory Supported | Up to 4.5 TB per socket |
| Supported Chipsets | Intel C620A series chipsets, available with integrated Intel QuickAssist Technology |
| PCH I/O | PCI Express* 3 - Up to 20 lanes (8 GT/s)
USB* 3.0 - Up to 10 ports SATA* 3.0 - Up to 14 ports DMI - Up to 4 lanes, Gen 3 |
| Platform Manageability | Intel Server Platform Services (Intel SPS) and Intel Resource Director Technology (Intel RDT) |
| Storage Manageability | Intel Volume Management Device (Intel VMD) |
